Telescope Name: Convergent FA12

Telescope Price: $10,495

Item #: CFA12

CLICK HERE TO PURCHASE TODAY

DESCRIPTION

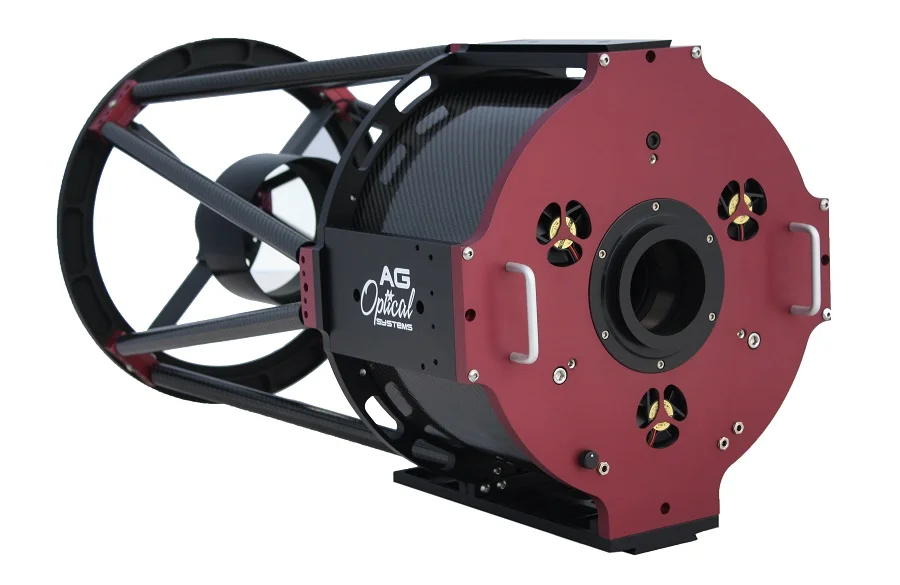

The AG Optical Systems Convergent Fast Astrograph .3 meter (12.5 inch) F5 telescope is a semi-portable imaging instrument featuring a huge 60mm flat field free from astigmatism and coma. The outstanding optical performance of the FA12 is made possible through the convergence of careful design, state-of-the-art manufacturing, and precise assembly.   Wide field images are captured with high-contrast details and sharp stars across the entire field of view.

The AG Optical Systems FA12 F5 optical system provides exceptional thermal stability. Low expansion optics ensure the figure and focus stability of the Convergent FA12 as the temperature changes over the course of an imaging session. When combined with the rigid, thermally stable carbon fiber truss tube assembly of the FA12 you can expect to spend less time focusing and more time collecting data.

AG Optical Systems FA series carbon fiber truss optical tube assemblies make extensive use of carbon fiber composite materials, CNC-machined components, and precision collimation adjustments to provide a rigid and thermally stable platform for the low expansion optics. Three cooling fans speed the cooling of the primary mirror while primary and secondary mirror anti-dew heaters can be automatically controlled by the optional Thermal Control System (TCS).

The optional, robust, digital Optec Gemini rotating focuser is ASCOM-compatible and is capable of precision focusing and rotation while carrying heavy CCD imaging trains.

Optical Tube Assembly

  • 43 lbs. carbon fiber tube assembly

  • Tube length: 27.25 inches

  • 12.5″ (.3m) low expansion substrate F5 optical system

  • 60mm corrected imaged circle, 2.2 degrees

  • Cooling fans and optional Thermal Control System

  • Dust covers

  • All CNC machined components, all stainless steel fasteners

Optical System

  • 12.5″ F5 corrected optical system with integral field corrector

  • 1570mm focal length

  • 7.1″ secondary obstruction (57% linear obstruction)

  • Performance: 5 micron RMS 15mm off-axis, 7 micron RMS 25mm off-axis

  • 6.2″ of back focus from Optec Gemini focuser

  • 96% enhanced aluminum coatings

  • Two-element permanently-aligned field corrector with broadband anti-reflection coating on all surfaces (<.5% reflectivity from 400 to 700 nm)

  • 4.4″ of back focus with Optec TCF-S3i focuser installed

Included items

Carbon fiber optical truss tube assembly

  • Losmandy “D” mount dovetail

  • Primary and secondary dust covers

  • Primary mirror cooling fans with power cable

  • Low expansion substrate optics with enhanced aluminum coatings

  • All stainless steel fasteners and springs

  • Backplate carrying handles
