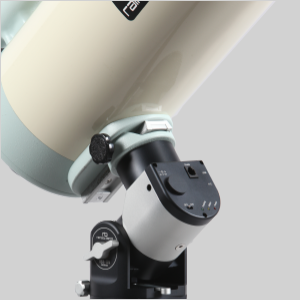

Rainbow Astro RST-135 Weightless Mount


You don’t need counterweights anymore.

You will take your dream shot anywhere if you have RST-135.

SPECIFICATION

  • Mount TypeEquatorial / Alt-Az Dual Mount

  • Type of GearStrain Wave Gear

  • Payload13.5kg (30lbs) - No need counterweight

  • 18kg (40lbs) – Use counterweight

  • Slew Speed6º / Second

  • Latitude Range0º to 90º

  • Power Input12 to 16V DC

  • Power Consumption0.2A - Tracking, 16V

  • 3A - Slewing, 16V

  • Weight3.3kg (7.3lbs)

  • Size(mm)130 x 120 x 190

  • MaterialsAL 6061, Steel, Brass

  • ASCOMSupport ASCOM Driver

  • Hand ControllerIncluded

  • Additional FunctionBuilt-in WiFi

  • Built-in GPS Receiver

  • Built-in Home Sensor

OVERVIEW

The RST-135 uses a new type of gear, strain wave gear. Due to the strong force of the strain wave gear and the motor, counterweight is not needed. The mount weights only 3.3kg, but you can use a 13.5kg telescope. We call this breakthrough mount a Weightless Mount. The volume and weight of the mount is no longer a problem in a trip for astrophotography.

FEATURES

Compact and light   Mount weighs only 3.3kg. You do not need a separate bag for Mount. Just put it in your backpack.

Compact and light

Mount weighs only 3.3kg. You do not need a separate bag for Mount. Just put it in your backpack.

Equatorial / Alt-Az dual Mount   You can easily change to Equatorial mode and Alt-Azi mode. Show your family a star easily in Alt-Azi mode.

Equatorial / Alt-Az dual Mount

You can easily change to Equatorial mode and Alt-Azi mode. Show your family a star easily in Alt-Azi mode.

No need counterweight   You do not need a counterweight to use a 13.5kg telescope.

No need counterweight

You do not need a counterweight to use a 13.5kg telescope.

Beauty of machined product   Feel the beauty of machined product. All parts of RST-135 are made by machining solid block. The RST-135 is the perfect premium mount.

Beauty of machined product

Feel the beauty of machined product. All parts of RST-135 are made by machining solid block. The RST-135 is the perfect premium mount.

Strain wave gear   It is a new type of gear which is widely used in industrial robots. There is no backlash.

Strain wave gear

It is a new type of gear which is widely used in industrial robots. There is no backlash.

Built-in WiFi   This Mount has built-in WiFi. You can control and auto-guide the mount without cable.

Built-in WiFi

This Mount has built-in WiFi. You can control and auto-guide the mount without cable.

Built-in GPS receiver   Built-in GPS receiver eliminates the need to enter the location of the observer.

Built-in GPS receiver

Built-in GPS receiver eliminates the need to enter the location of the observer.

Built-in Home sensor   Home sensor finds the mechanical origin by itself. This is useful for remote observation.

Built-in Home sensor

Home sensor finds the mechanical origin by itself. This is useful for remote observation.
